Light Duty Common Rail Products
DFP6.20TP Pump
Technical Description
- Maximum Operating pressure: 2000 bar
- Upto 0.6 cc/pump revolution (3 lobe cam)
- Integrated Transfer Pump
- Inlet Metering Valve
- Drive : Belt / Camshaft / Gear / Chain / Oldham
- Drive interface: Conical interface / Oldham
- Driving ratio: 1:2 or 1:1
- Driving direction Clockwise
- Front mounting flange with 3 holes
- HP outlet M14 thread
- Stainless Steel Head Cap
- Transfer pump cover protected against corrosion
Customer Advantages
- Low fuel consumption
- Lower temperature for fuel returned to the tank

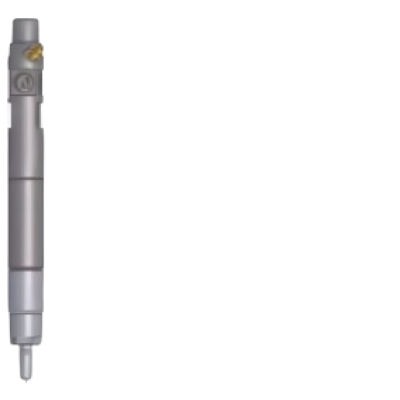

DFI1.5.2 Injector
Technical Descriptions
- Maximum Operating pressure: 2000 bar
- Upto 9 injections per cycle
- Solenoid actuated 2-way control valve with low inertia
- Axial 19mm body and stepped capnut
- 2-way Electrical connection
- Nozzle: micro-sac, up to 8 injection holes
- Corrosion protection: Phosphate type deposit on Capnut and NHB
- High reliability package
- Valve Robustness package to deposit and negative back pressure running package
Customer Advantages
- Low voltage activation allows simpler, reliable and cost effective electronic design
- Optimized injection rate
- Rail pressure discharge capability enables HPV removal
- End Of injector assembly Line I3C characterization process for lower quantity scatter
- Small quantity learning for pilot & main low scatter & better noise/emission trade-off

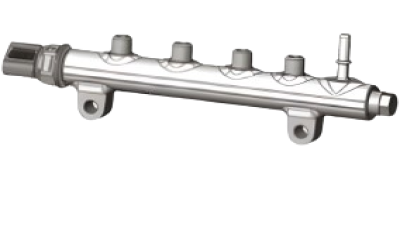

DFR3.20 Rail
Technical Descriptions
- Max Operating Pressure: 2000 bar
- Forged tubular rail
- Cataphoretic painting applied before machining
- M14 x 1.5 mm HP outlet & inlet
- 2 x ID 9 mm fixations pads
- High Pressure Sensor
- Optional Pressure Limiting Valve
- Orifice on HP Outlets
Customer Advantages
- Low Mass
- Optimized Hydraulic for all HP inlet and outlet

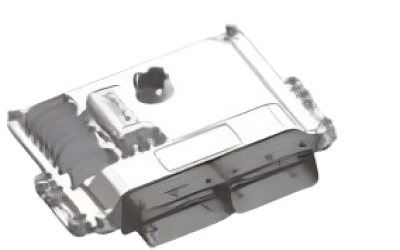

DCM7.1 ECU
Technical Descriptions
- Designed for medium and high spec Eu6/BS6 application
- 196 pins arranged in 2 cavities
- 12V Capable with 28V Boost
- 32bit Multi-core microprocessor @ 200MHz
- 4 to 8MB Flash ROM
- 472K RAM
- Chassis mount
- Lead free soldering
- Under bonnet with IP6K9K sealing protection with connector
- Ambient -40°C to 105°C
- Chassis / body mounting
- Supports DPF / LNT / SCR with OBD2 functions
